RetroGrid for REAPER
Article
RetroGrid is a REAPER JSFX plugin for crunchy old-sampler character. It is inspired by the early Fruity Loops sound: clipped samples, ring modulation, reduced bit depth, sample-rate reduction, and the rough 4-bit and 8-bit edges that make small sounds feel direct, cheap, loud, and alive.

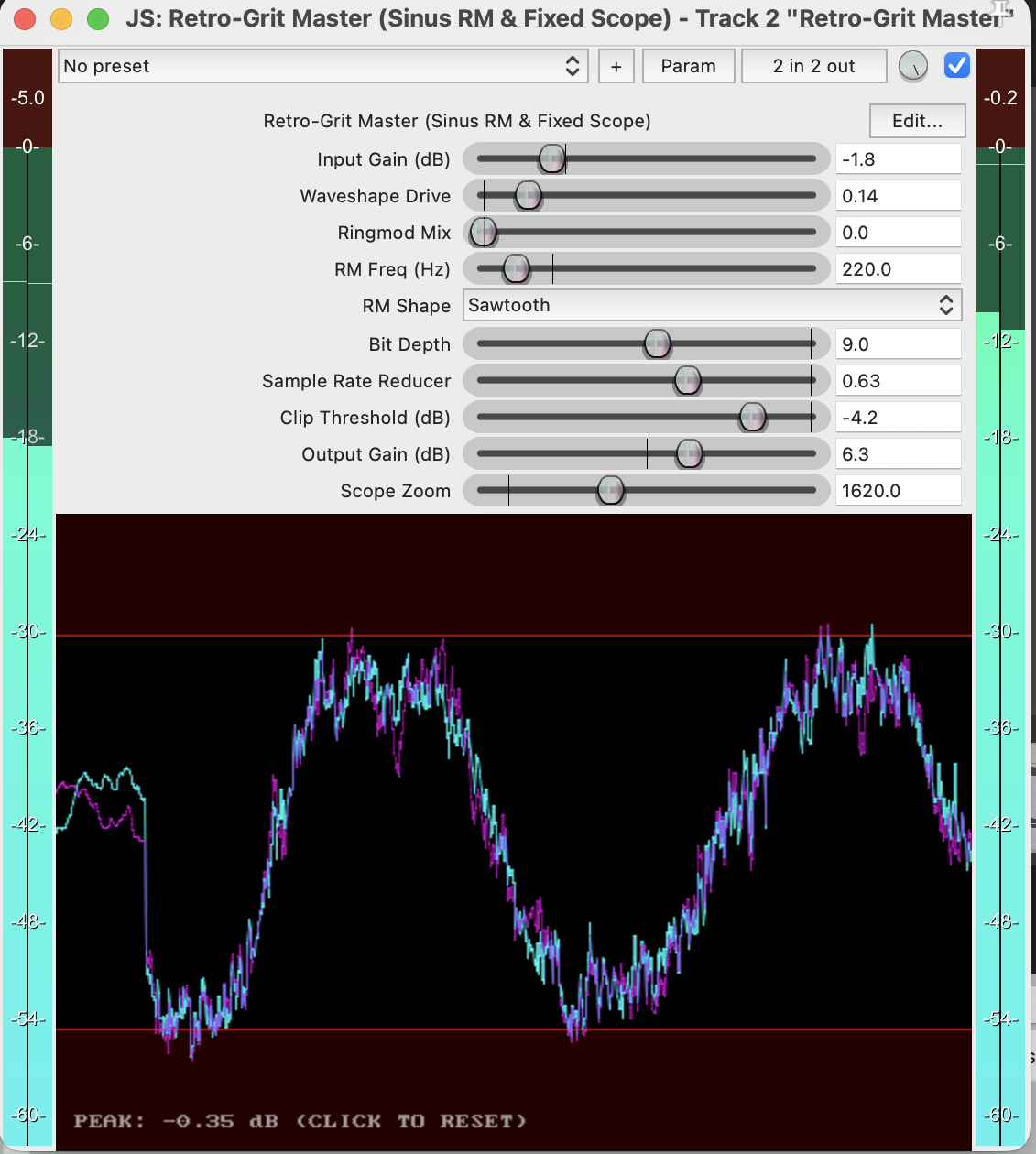

The plugin is meant as a character effect rather than a clean repair tool. It can push drums, one-shot samples, loops, voices, and game-like sounds into a more damaged digital grid. The built-in scope shows the left and right waveform in cyan and magenta, with red zones for the clipping threshold.
Open the project page
Download RetroGrid
Read the manual
What is inside
- Input gain for driving the whole effect.
- Waveshape Drive for rounded saturation.
- Ringmod Mix with sine or sawtooth modulation.
- Bit Depth reduction for 8-bit and 4-bit grit.
- Sample Rate Reducer for aliased, older-sampler movement.
- Clip Threshold for flattened digital peaks.
- Output Gain for level matching after the effect.
- Scope Zoom for the built-in waveform display.
Installation
Copy RetroGrid.jsfx to the REAPER Effects folder. In REAPER, open Options > Show REAPER resource path in explorer/finder, then open Effects and place the file there.
Inside REAPER the current effect name is Retro-Grit Master (Sinus RM & Fixed Scope).
